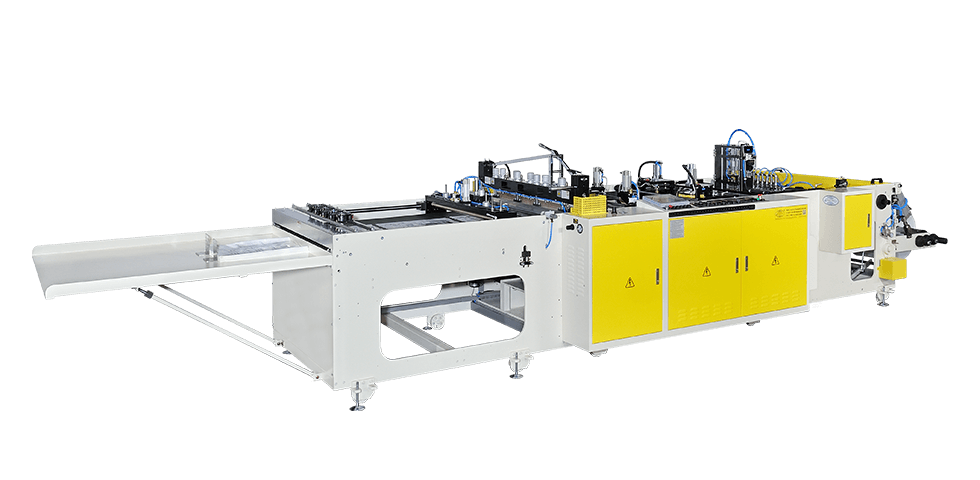

1 Line Flying Knife Heavy Duty Bottom Sealing Bag Making Machine

DESCRIPTION

Automatic Flying Knife Heavy Duty Bottom Sealing Bag Making Machine

CW-FK1 is for 1 line printed or non-printed thick bottom sealed bags at maximum speed 80 bags/min.

Machine Features:

• Machine body is made of thick steel frame for stability at high speed operation.

• Automatic lift up film roll unwinder with air shaft, reducing the number of employees.

• Dancing rollers with automatic tension control by AC motor with Japan made YASKAWA inverter for stable film back feeding.

• One set Japan made YASKAWA servo motor and servo drive control bag's length precisely and stable speed, reducing electric consumption.

• Servo controlled flying knife system for fast and stable cutting quality with easy replacement of blades.

• Impulse wire down sealing for thick bags.

• Bag's length and production speed can be set easily on the touch screen.

• One set German made SICK photocell for 1 line accurate printed bags.

• Water cooling pressing bar to make seal flat and avoid bags sticking to each other.

• Operation table for collecting finished bags.

• Machine stops automatically when:

  1. Bags jammed.

  2. Film is finished or broken.

  3. Temperature below the setting.

  4. Print is not at correct position.

Optional Equipment:

• E.P.C (Edge Position Control) guiding device.

• Slant type sealing device.

• Reinforced pre-sealing devices on gussets.

• Hole punching device (Ø 5 to 20 mm air hole).

• Handle punching device (Kidney shape, banana shape or customized handle).

• Auto stacker conveyor unit.
